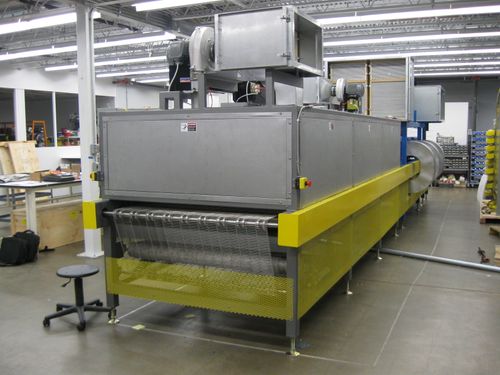

Flat Belt Conveyorized Oven
Flat belt conveyor systems are often used for processing small or flat parts that are only coated on one side.
This allows for a simpler conveying system and the potential for multiple rows of parts running simultaneously.
Casso-Solar Technologies produces dryers, furnaces and cooling equipment for these processes.
When running multiple rows of parts, the equipment is designed with multiple zones across the width of the oven for precise control over the process.
Exit temperature monitoring can be provided to allow for closed-loop feedback based on the part temperature.

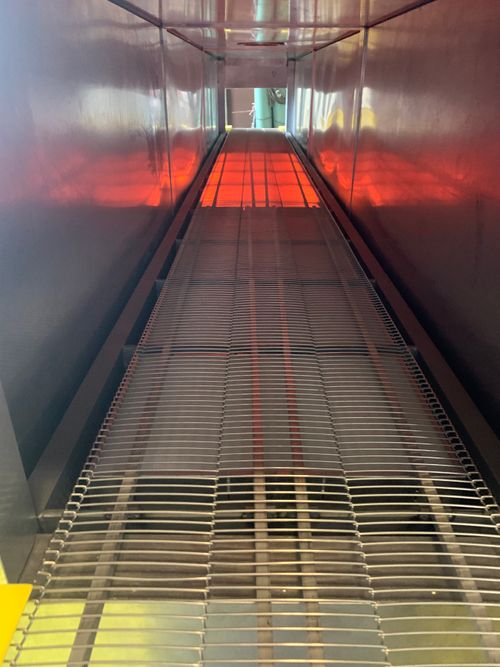

Depending on the parts to be conveyed and the specific handling requirements multiple different types of conveyor belts are available, ranging from Teflon-coated fiberglass mesh belts to metal wire mesh belts.
Contact a Casso-Solar Technologies Sales Engineer today to discuss your application and learn what we can provide to fit your needs.
Contact our Sales Team to discuss our extensive offerings and find out how we can deliver equipment custom-designed for your needs.
Video
Features
- Capable of conveying parts of varying shapes and sizes, including small parts that are unable to be conveyed by other conveyor types
- Automated tensioning and tracking systems eliminate need for adjustments over time

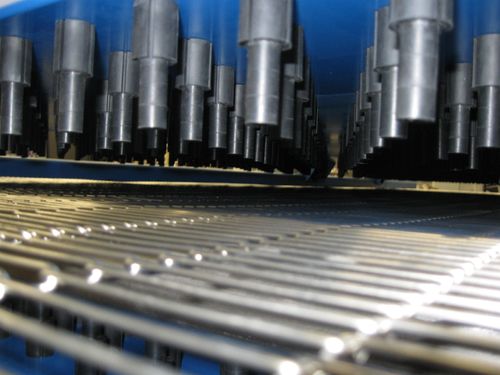

- Can be heated from both above and below the belt for thicker parts
- Belts typically run on machined slider beds to ensure flatness
- Automated Control via PLC and touchscreen HMI
Specifications
- Wide range of belt materials available: PTFE-coated Fiberglass, Kevlar, Metal Mesh (Stainless Steel or Other High Temp Materials)
- Allows for a wide range of operating temperatures - up to 650C
- Speeds ranging from 0.5 to 50 feet/minute
- Belt widths from 4" up to 108" have been built
- Can Be Built for a Variety of Voltages (380V, 400V, 415V, 480V, 575V, 600V, etc.)
Available Options & Customizations
- Can be designed to handle multiple lanes of parts, either on the same belt or individual belts
- Heater zones in both across the width and down the length of the oven as needed
- The top of the oven can be connected to a lift system to allow for easy maintenance access
- Pyrometers to measure part exit temperature can be used for more precise control
